Bootstrap current in the KSTAR plasma collisionality scan
I have compared the bootstrap currents for the first three cases. Due to additional particle sources in the last case, I have excluded this case from comparison.
Case XGC-T85Y

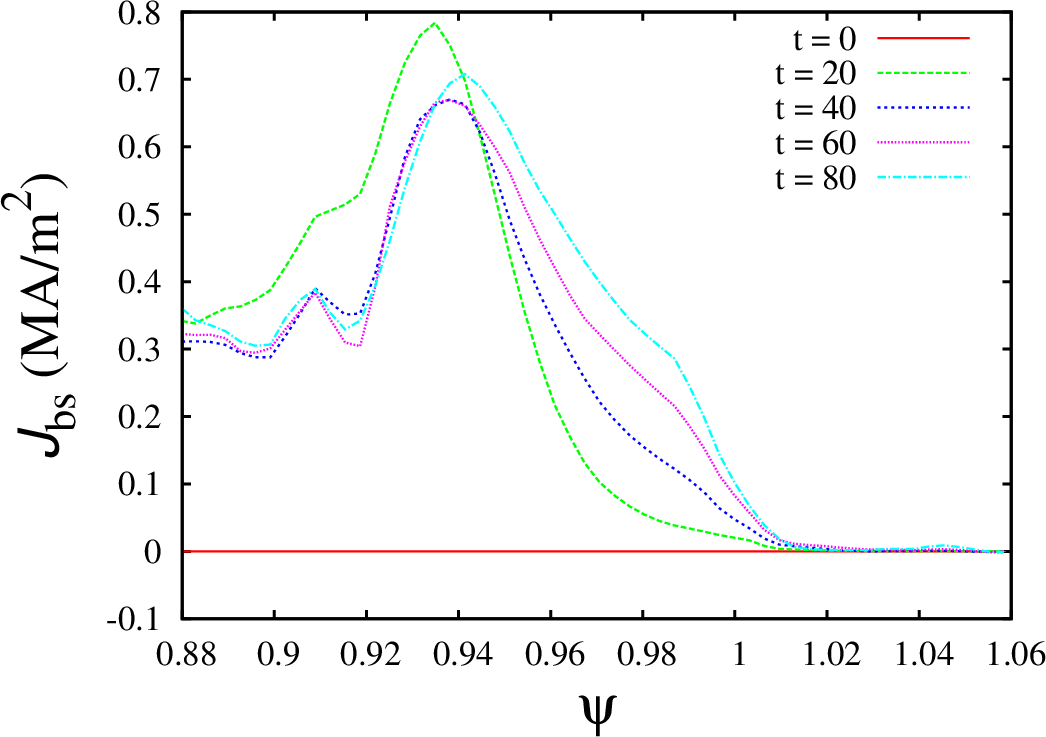

Bootstrap current for the case XGC-T85Y
Case XGC-T86Y

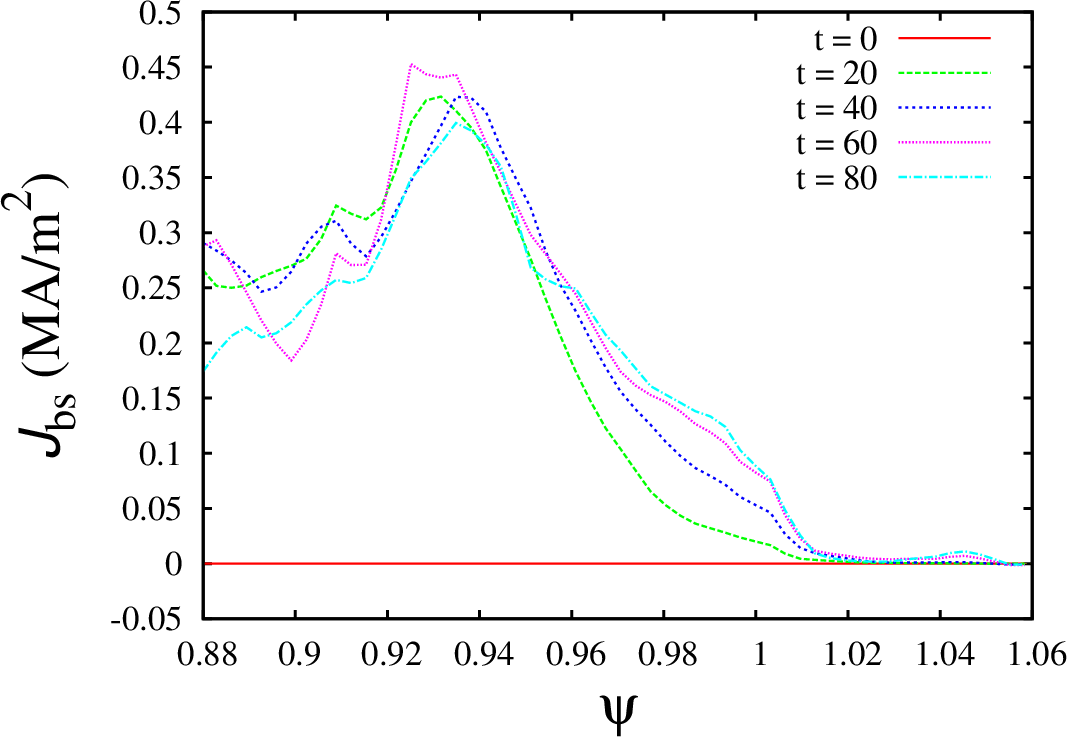

Bootstrap current for the case XGC-T86Y
Case XGC-T87Y

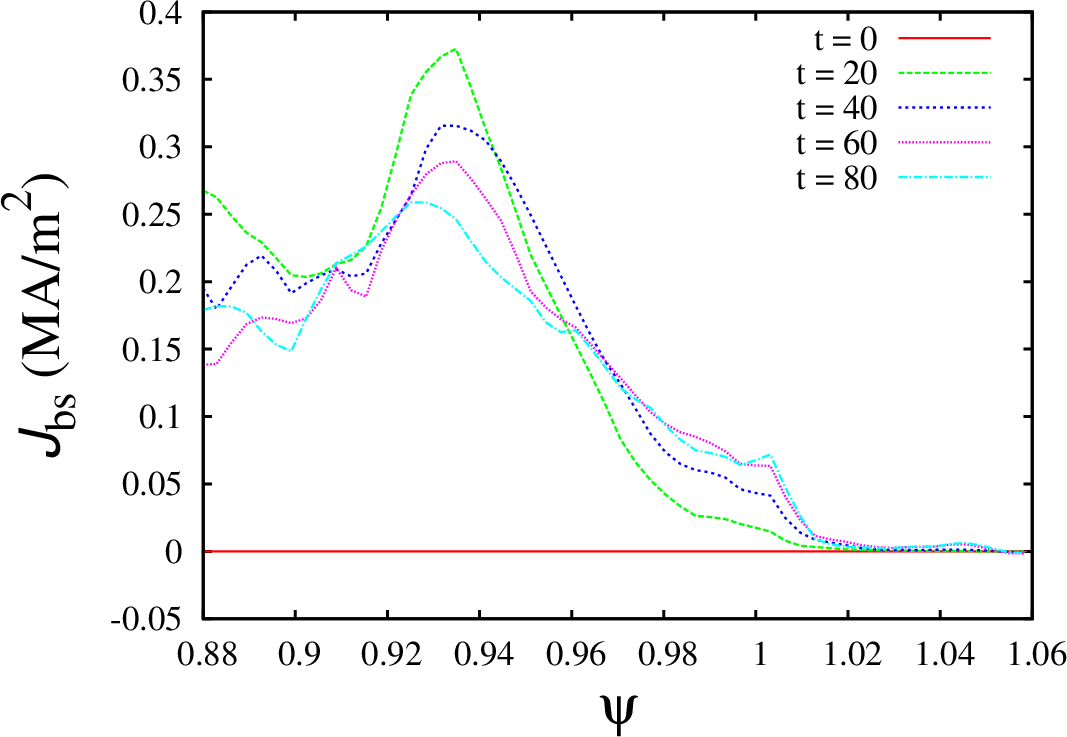

Bootstrap current for the case XGC-T87Y

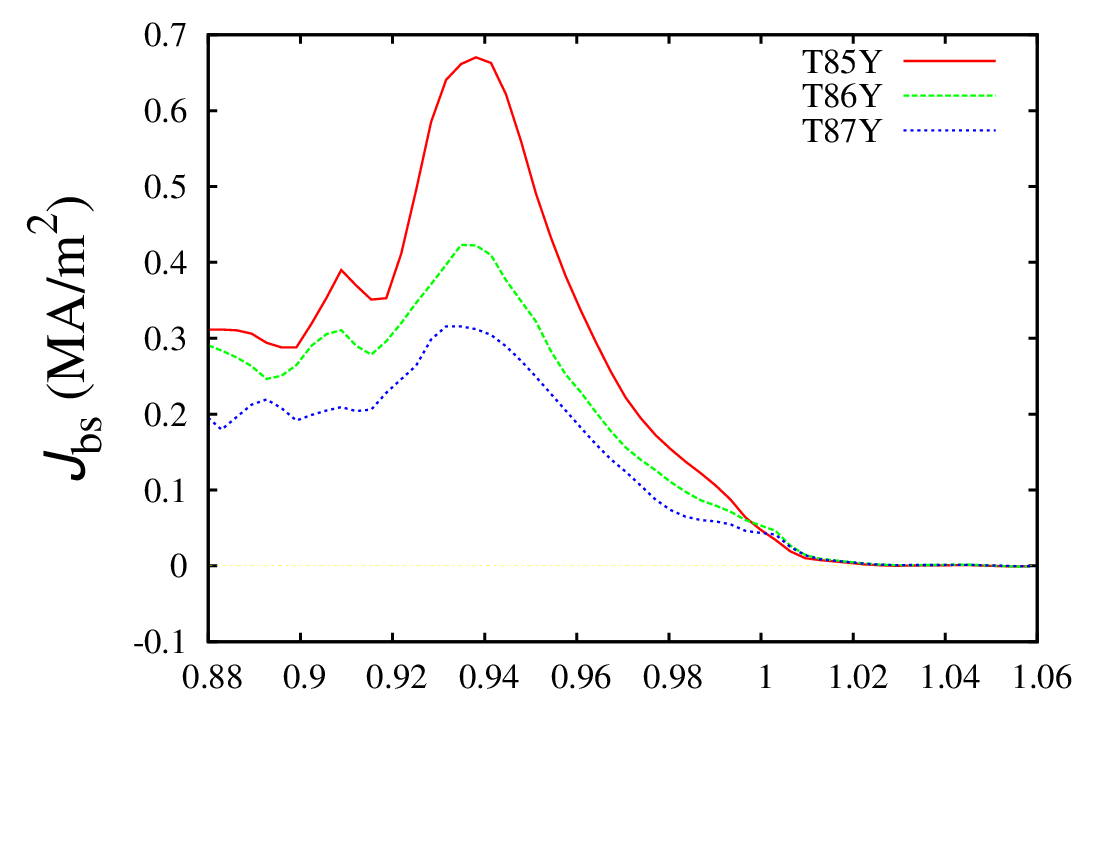

Comparison of bootstrap current after 40 ion transit times
Comparison of bootstrap currents
